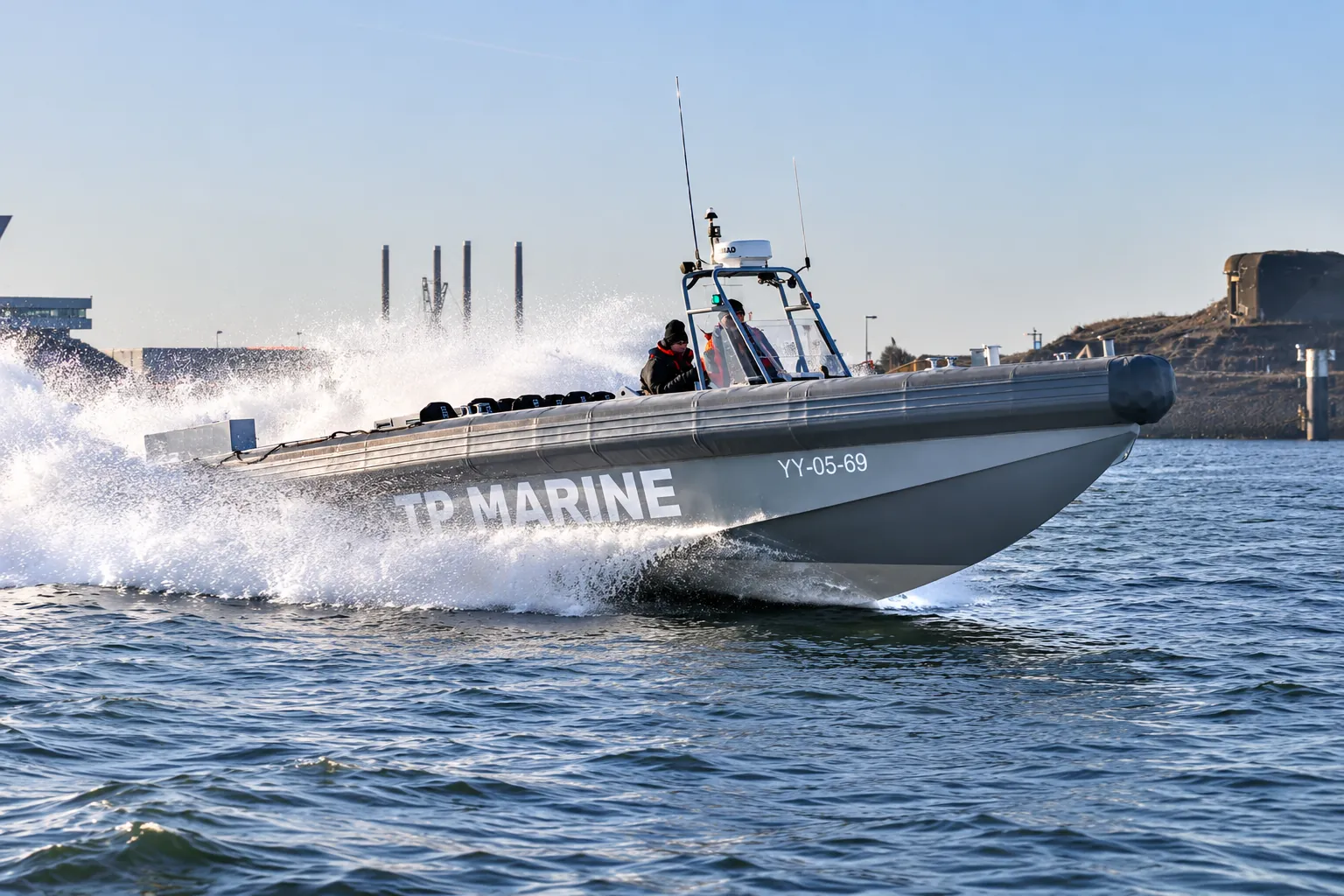

Over 50 knots fully loaded, built for 60 knots and 6 G

The flagship of the MIL Series: a 14.2 m open interceptor in marine-grade aluminium, designed by naval architects specialising in ultra-fast craft. Its deep-V, hard-chine hull is proven offshore, with predictable and forgiving handling at every speed.

Twin Cummins QSM11 diesels (2 × 705 hp) drive Rolls-Royce FF-series mixed-flow waterjets with integrated interceptor trim control. With standard production diesels it exceeds 50 knots at full load, cruises at 35 knots and has a range of 350 nm, so it can respond quickly to interdict illegal activity anywhere in its area of operation.

The hull runs at full speed in sea state 2–3 with reasonable crew comfort, and a skilled helmsman can operate it effectively up to sea state 4–5. Fourteen Ullman Biscaya suspension seats carry the crew and boarding team, a 3.7 m aft deck supports boarding, SAR and helicopter transfers, and a hybrid foam/pneumatic collar protects the hull alongside.

Features & advantages

Twin Cummins QSM11 diesels, 2 × 705 hp (526 kW)

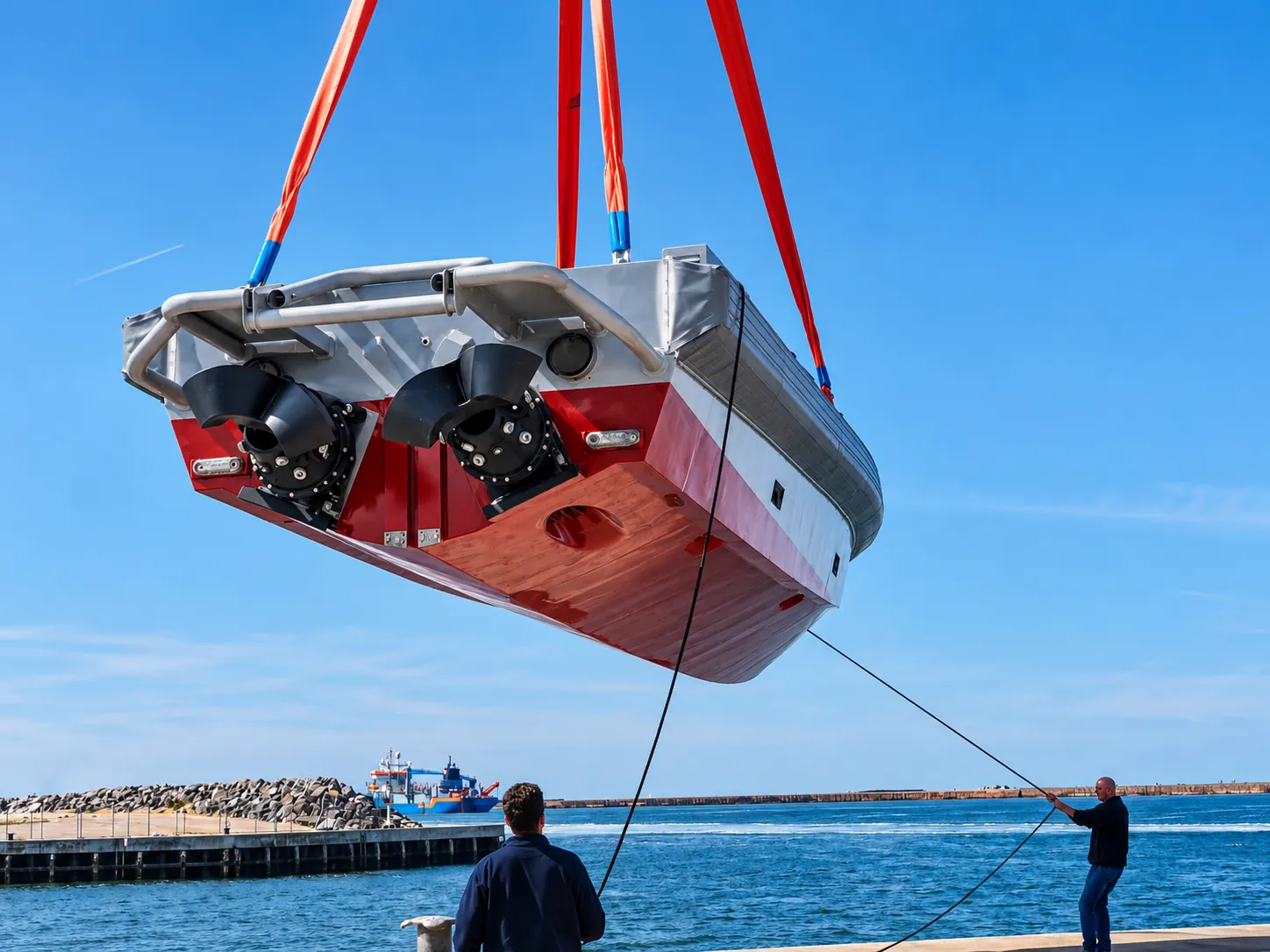

Rolls-Royce mixed-flow waterjets with interceptor trim control
Over 50 knots at full load; 35 knots cruise; 350 nm range
Marine-grade aluminium hull and deck, designed for 60+ knots and 6 G
14 Ullman Biscaya suspension jockey seats with safety belts
Hybrid foam/pneumatic collar for impacts with sharp objects
3.7 m aft deck for boarding, SAR, tender stowage and helicopter transfers

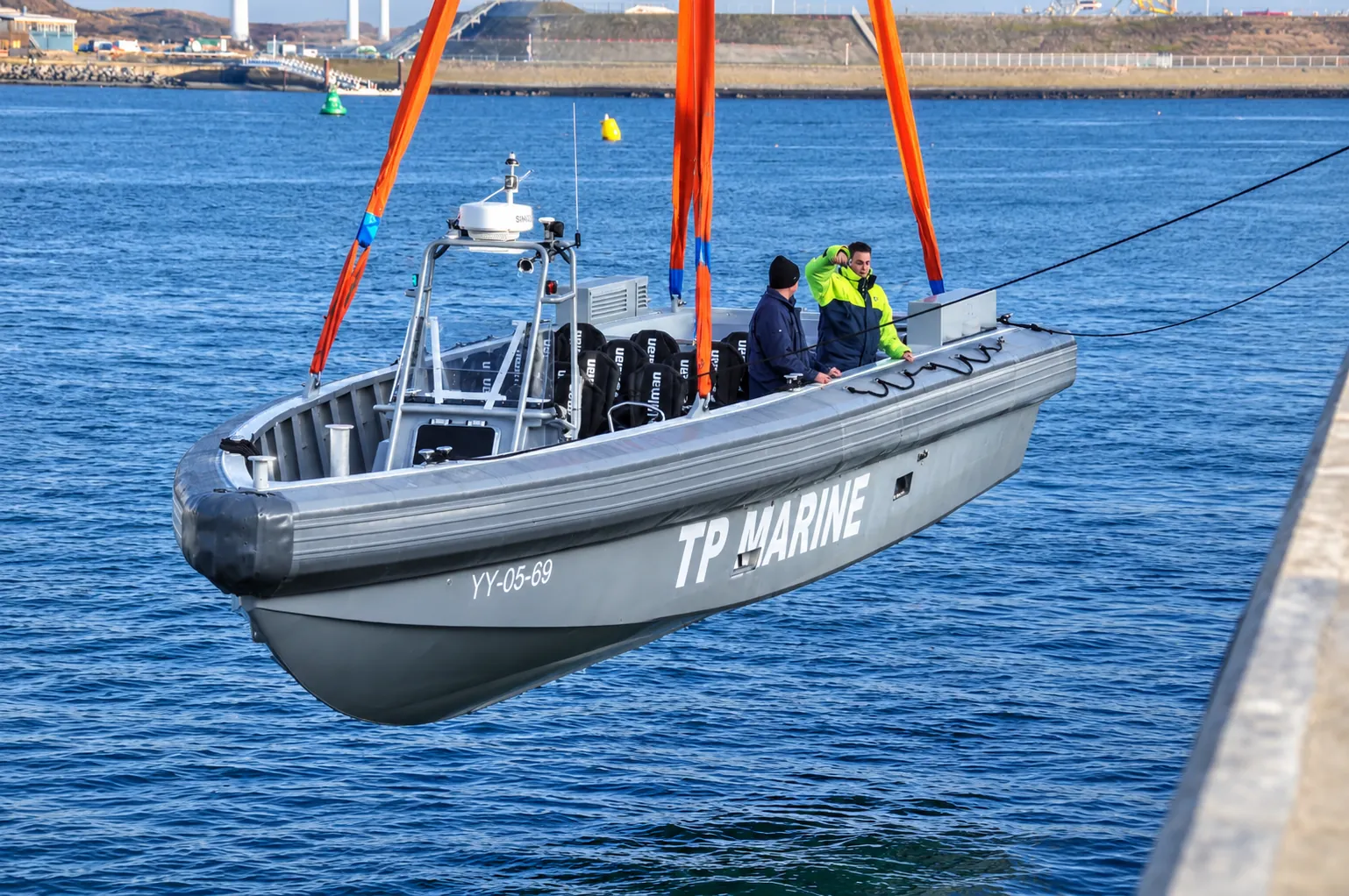

Designed to DNV HSLC rules; single-point crane lift

Applications

Interception & interdiction
Boarding operations
Special operations
Customs & border security
Search & rescue
Force protection

Gallery

Click an image to view it full screen.

Technical data

Specifications

Values shown are for the reference configuration. Every TP Marine RHIB is built to order — dimensions, power and equipment are adapted to your requirements.

Principal data

Length overall	14.2 m
Length waterline	13.2 m
Beam overall	3.3 m
Beam, hull moulded	2.9 m
Draft (max. displacement)	0.76 m
Displacement, light	8.1 t
Displacement, full load	10.3 t
Hull deadrise	22°
Persons	Up to 14, including 2 crew

Propulsion & performance

Engines	2 × Cummins QSM11, 6-cyl. turbocharged/aftercooled diesel
Power	2 × 526 kW (705 hp) @ 2,500 rpm
Transmissions	2 × ZF 305-2 reversing, 1.22:1

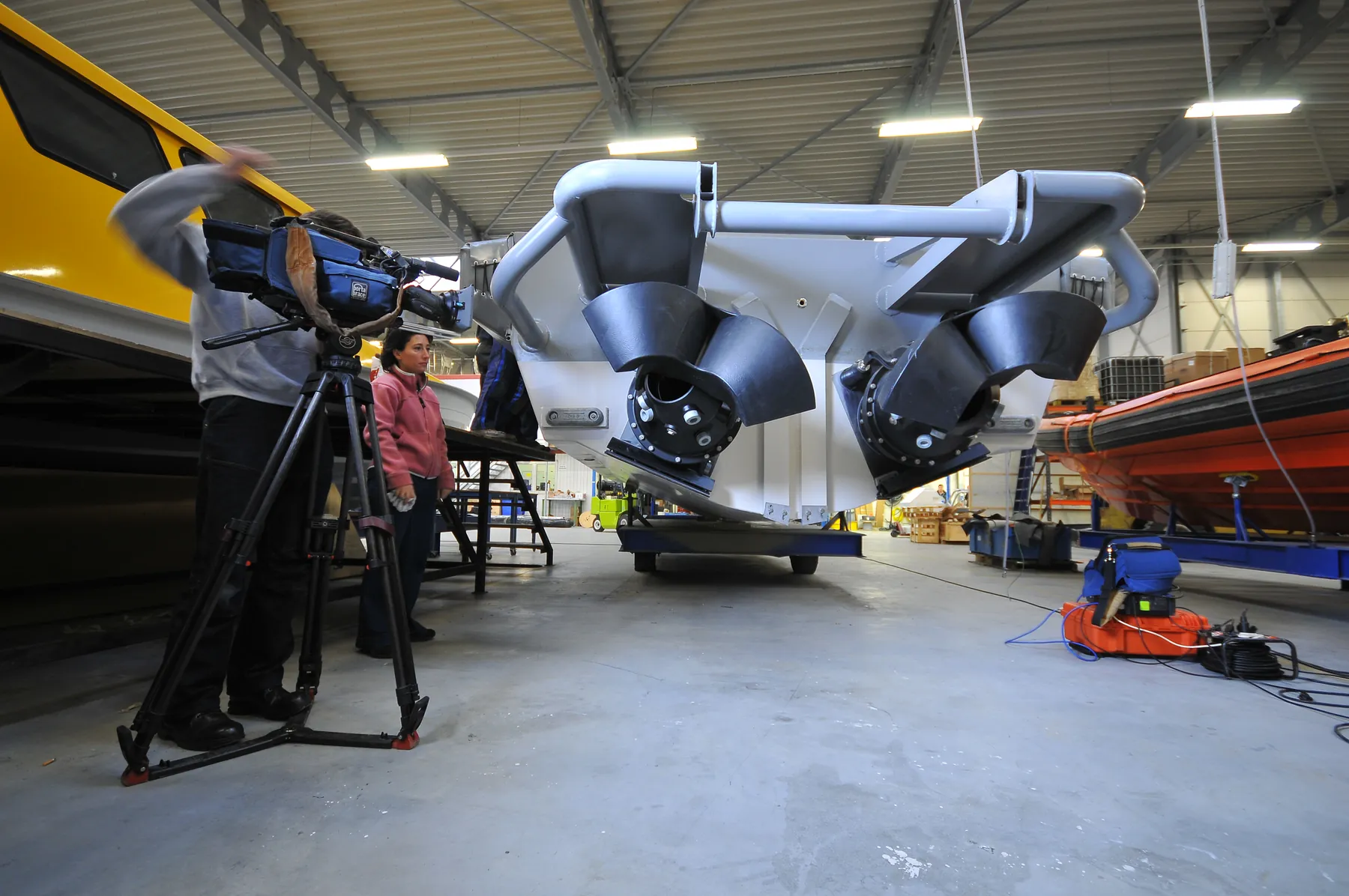

Propulsion	2 × Rolls-Royce FF-series mixed-flow waterjets
Trim control	Integrated waterjet interceptors
Speed, full load	50+ knots (49+ knots at 55 °C, 90% RH)
Cruising speed	35 knots
Fuel capacity	1,575 l in three integral tanks
Range at 35 knots	350 nm (5% reserve)

Construction

Hull plating	5083-H116 aluminium, 6 mm below the chine, 3 mm sides
Framing	6082 “top-hat” extrusions, longitudinal and transverse
Design loads	Speeds over 60 knots with up to 6 G
Keel & stem	Reinforced for impacts and beaching
Deck	One-piece, bonded and riveted; Skydex shock-absorbing floor
Collar	CPI hybrid foam/pneumatic collar, closed-cell PU
Rules	Designed to DNV HSLC; MCA final inspection

Systems & equipment

Electrics	24 V DC, 4 × gel batteries, 30 A shore charger
Controls	Kobelt four-lever head; power-assisted hydraulic steering
Navigation	Simrad GPS, radar with ARPA/AIS, echo sounder, compass
Communications	Provision for HF, UHF and VHF (drop-in package)
Lighting	Normal, IR-console and total-blackout modes; IR beacon
Fire protection	Heat-sensing alarm, CO2 engine-room system, portable extinguishers
Mission fit	Removable pintle mounts fore and aft for light weapons

Hull & deck

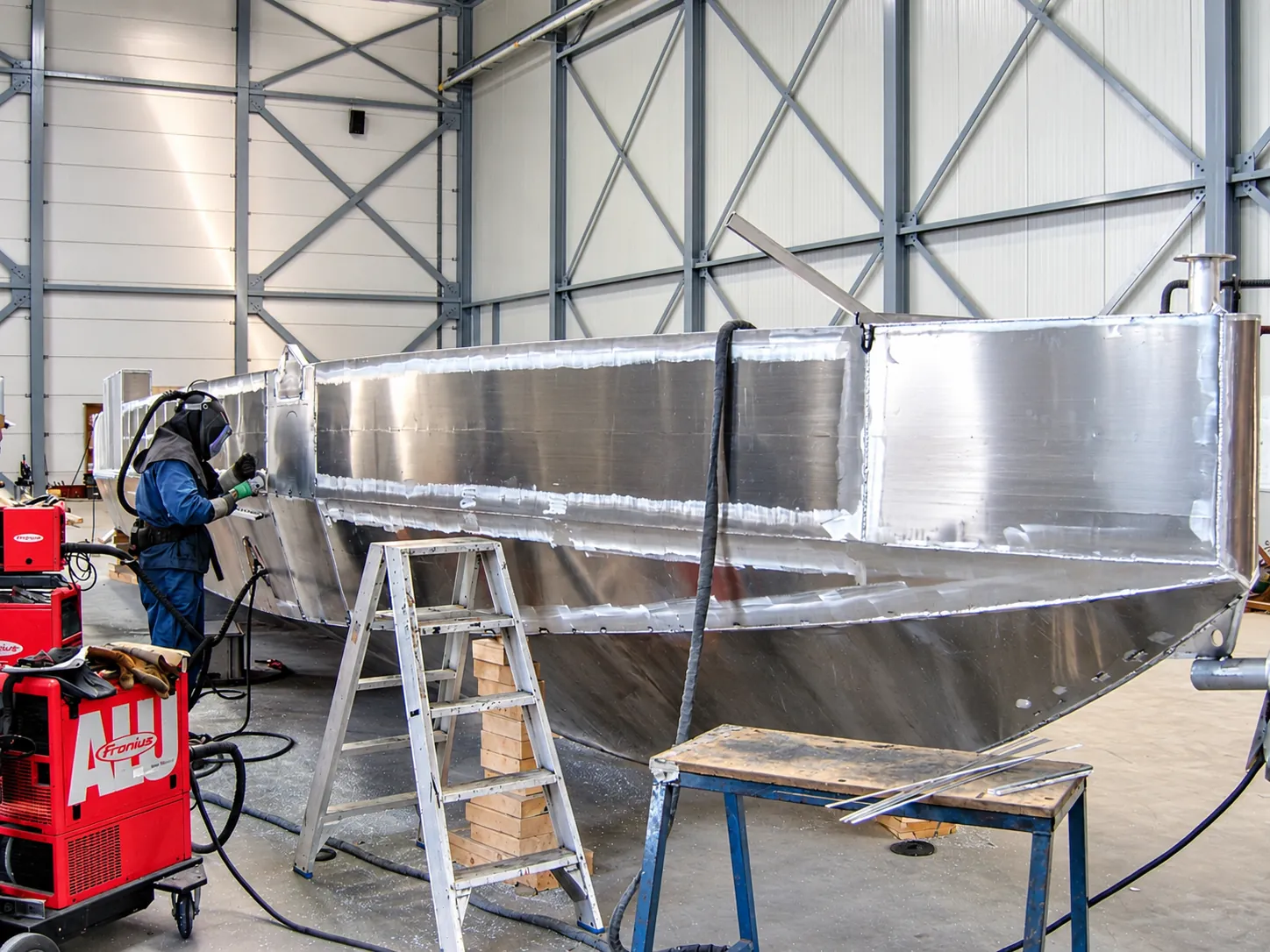

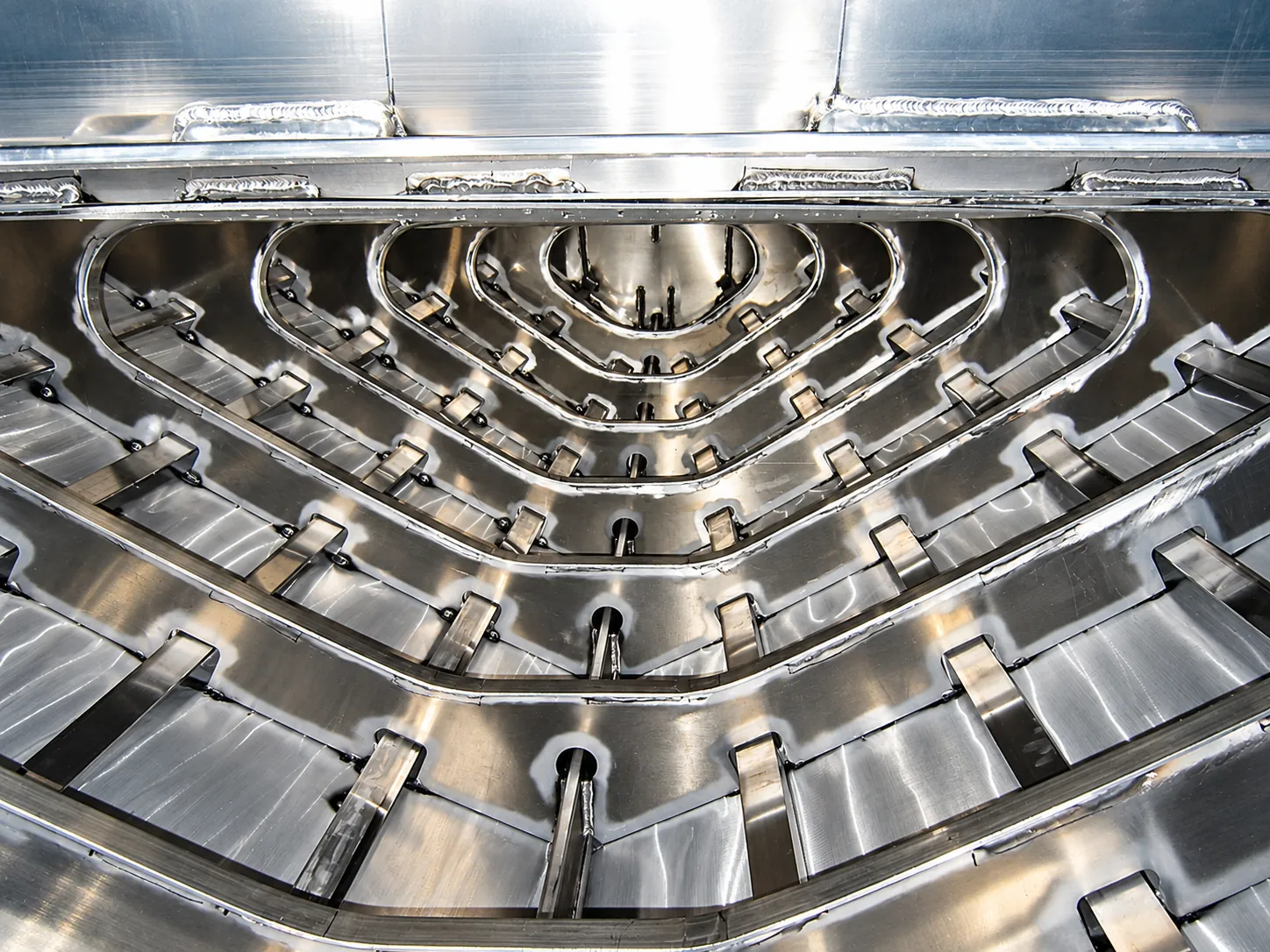

Single-skin 6 mm plating below the chine and 3 mm sides, stiffened with longitudinal and transverse top-hat extrusions, with 4 mm bulkheads. The keel and stem are reinforced for boat-to-boat contact and beaching. The one-piece deck is bonded and riveted to the frames; the aft deck over the engine room is stiffened to carry an inflatable boat, cargo or personnel landed by helicopter.

Deck arrangement

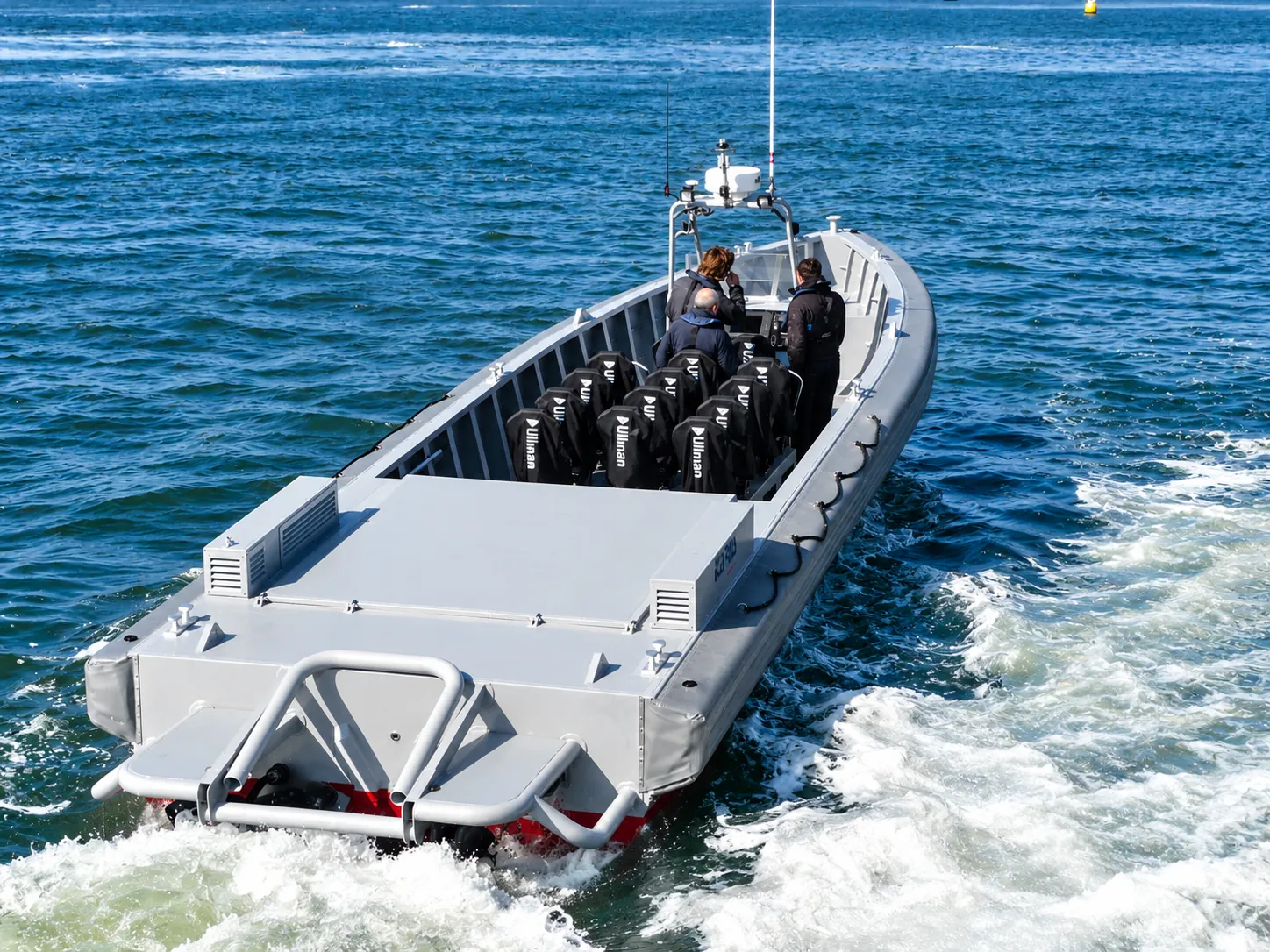

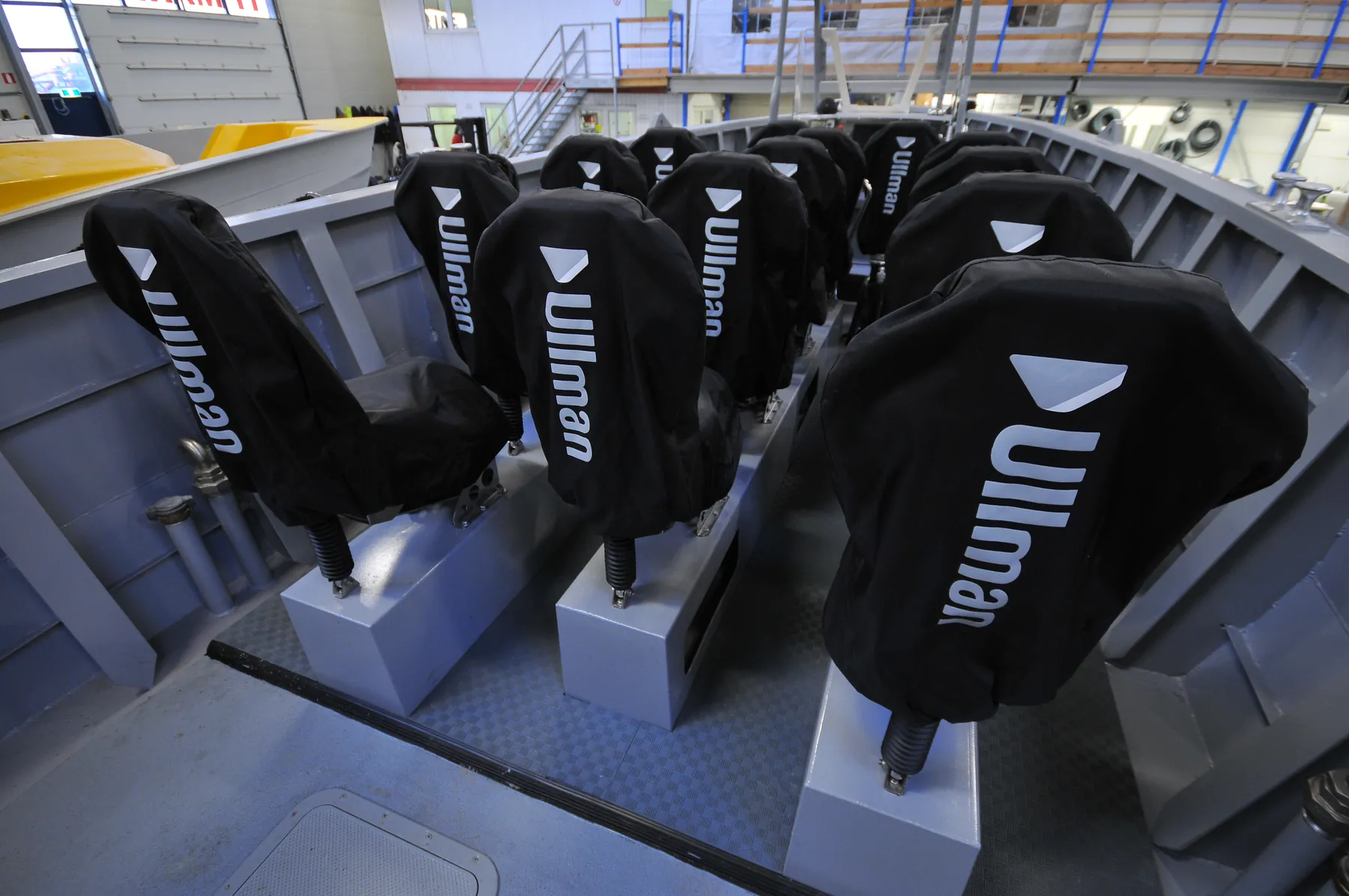

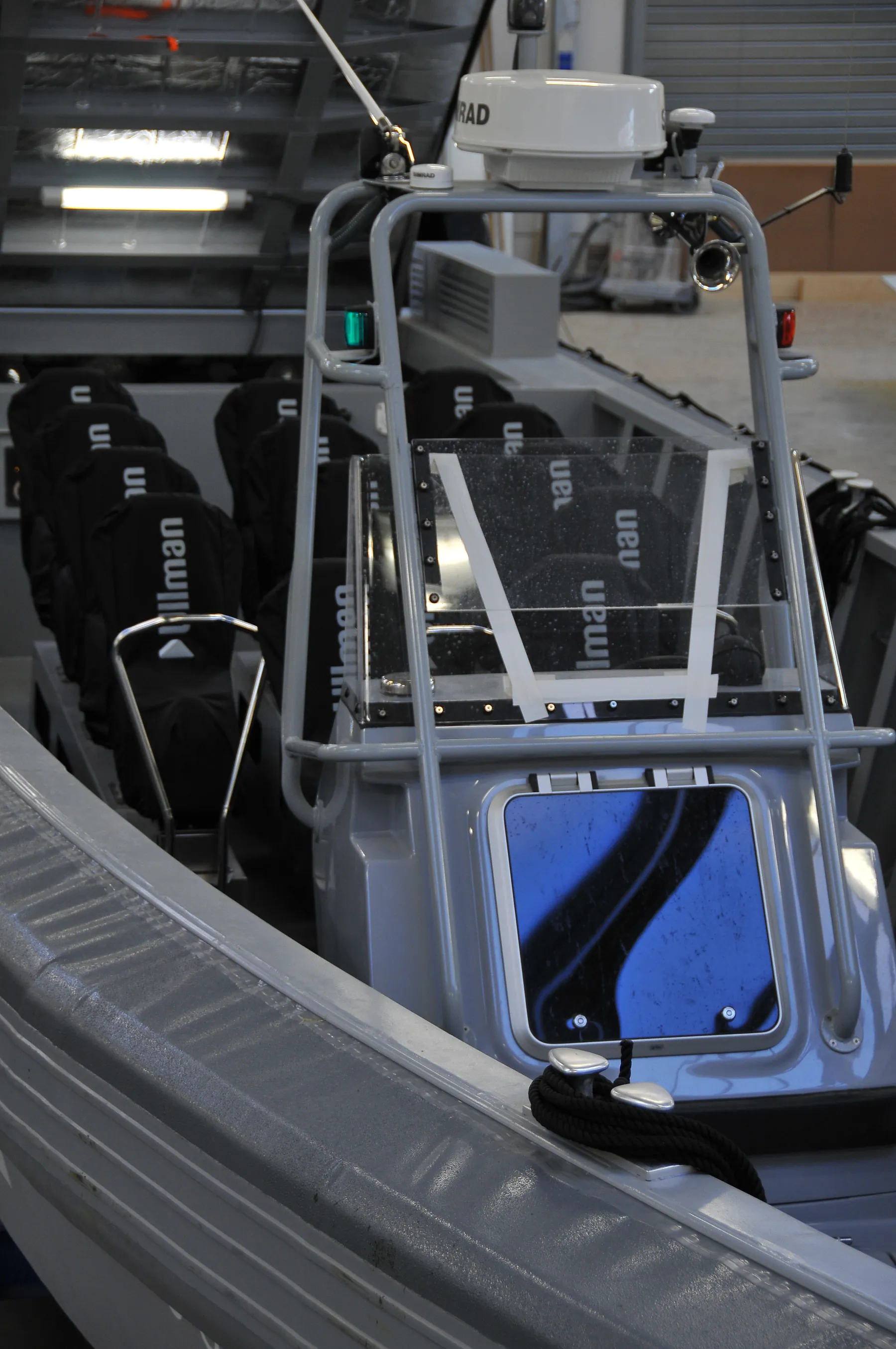

Forward console with Lexan windscreen, grab rail and a foldable arch for radar and antennas, ergonomically matched to two Ullman Biscaya jockey seats for helmsman and commander. Twelve more Ullman seats in four rows of three on removable bases that double as storage. The 3.7 m aft deck has a platform over the waterjets for recovering people from the water and a fold-away slide for launching a small inflatable.

Propulsion & systems

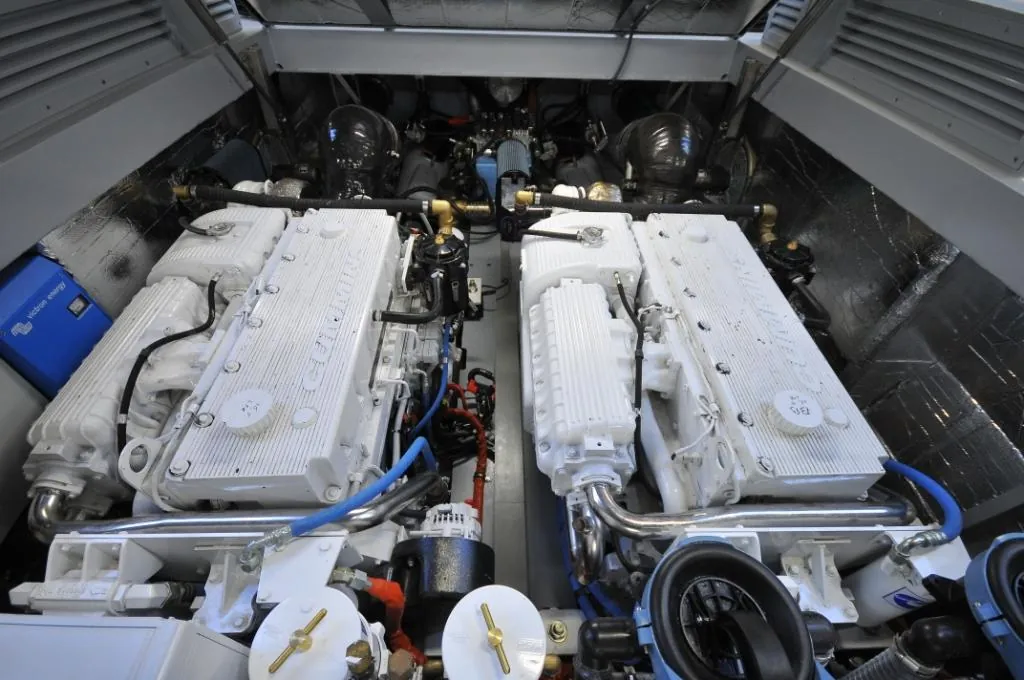

Each Cummins QSM11 is run in for at least four hours on a dynamometer. Water-injected exhausts with anti-ingress flaps, extractor fans with a ten-minute run-on, three baffled integral fuel tanks with water-trap pre-filters and a valve manifold, electric and hand bilge pumps for every space, and a fully sound-insulated engine compartment with a single weather-tight hatch for vertical engine removal.

Trials & warranty

Every craft is inclined and sea-trialled before delivery, with speed, manoeuvring and stopping tests recorded, and trialled again in the customer’s waters at handover. A 60-month warranty on workmanship and equipment, with engines and waterjets covered by their manufacturers.
