Intercept-grade hull, superyacht comfort

A 10.55 m high-speed RIB built on the hull and systems of our commercial intercept craft and finished as a premium yacht tender. Twin Volvo Penta D6 diesels with Duoprop sterndrives give around 45 knots and a cruising range of about 250 nautical miles.

A small cabin with a waterproof door houses a chemical toilet and dry seating for four. Behind it, six shock-mitigated seats carry guests in comfort, and a large sun pad covers the engine room. A teak-inlay boarding platform, freshwater shower, fridge and marine audio complete the package.

High-impact neoprene-Hypalon fendering protects both the tender and the mother yacht when coming alongside.

Features & advantages

Twin Volvo Penta D6-370 diesels, Duoprop sterndrives: ±45 knots
Range of ±250 nm at cruising speed
Cabin with waterproof door, chemical toilet and dry seating for 4
2 Ullman crew seats + 6 foldable Shockwave passenger seats
Sun pad over the engine room, teak-inlay boarding platform
Freshwater shower, fridge and marine audio system
Bow thruster for easy berthing alongside the yacht
Cell-core structure with Kevlar-carbon reinforcement, no wood

Applications

Superyacht tender
Guest transfers
Diving & water sports
Day cruising
Security escort

Gallery

Click an image to view it full screen.

Technical data

Specifications

Values shown are for the reference configuration. Every TP Marine RHIB is built to order — dimensions, power and equipment are adapted to your requirements.

Principal data

Length overall	10.55 m
Length waterline	9.03 m
Beam overall	3.45 m
Beam waterline	2.45 m
Weight (lightship)	± 6,500 kg
Seating	2 crew (Ullman) + 6 passengers (Shockwave)
Cabin	Dry seating for 4, chemical toilet

Propulsion & performance

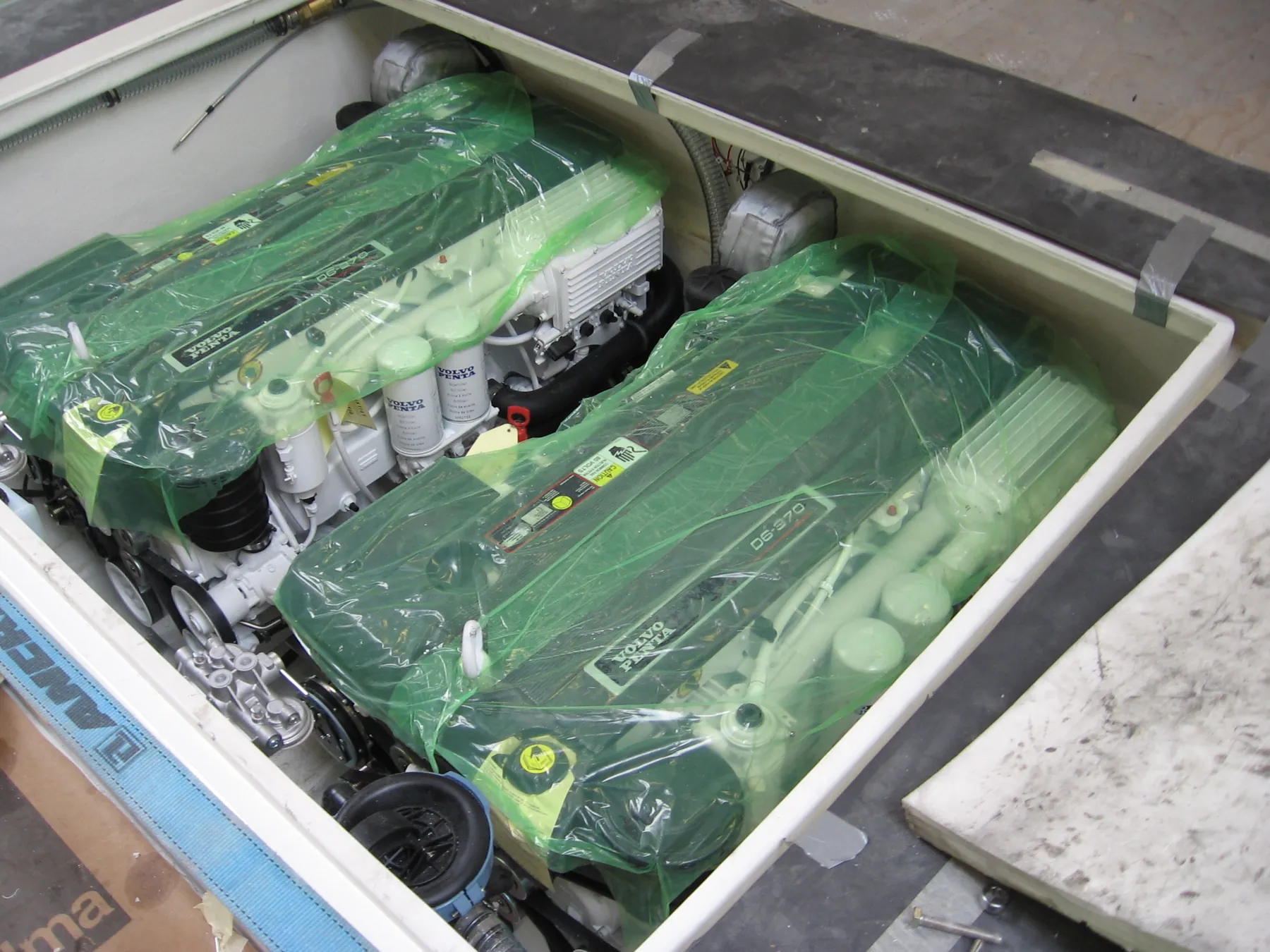

Engines	2 × Volvo Penta D6-370, electronic, twin turbo & intercooler
Power	2 × 370 HP @ 3,400 rpm

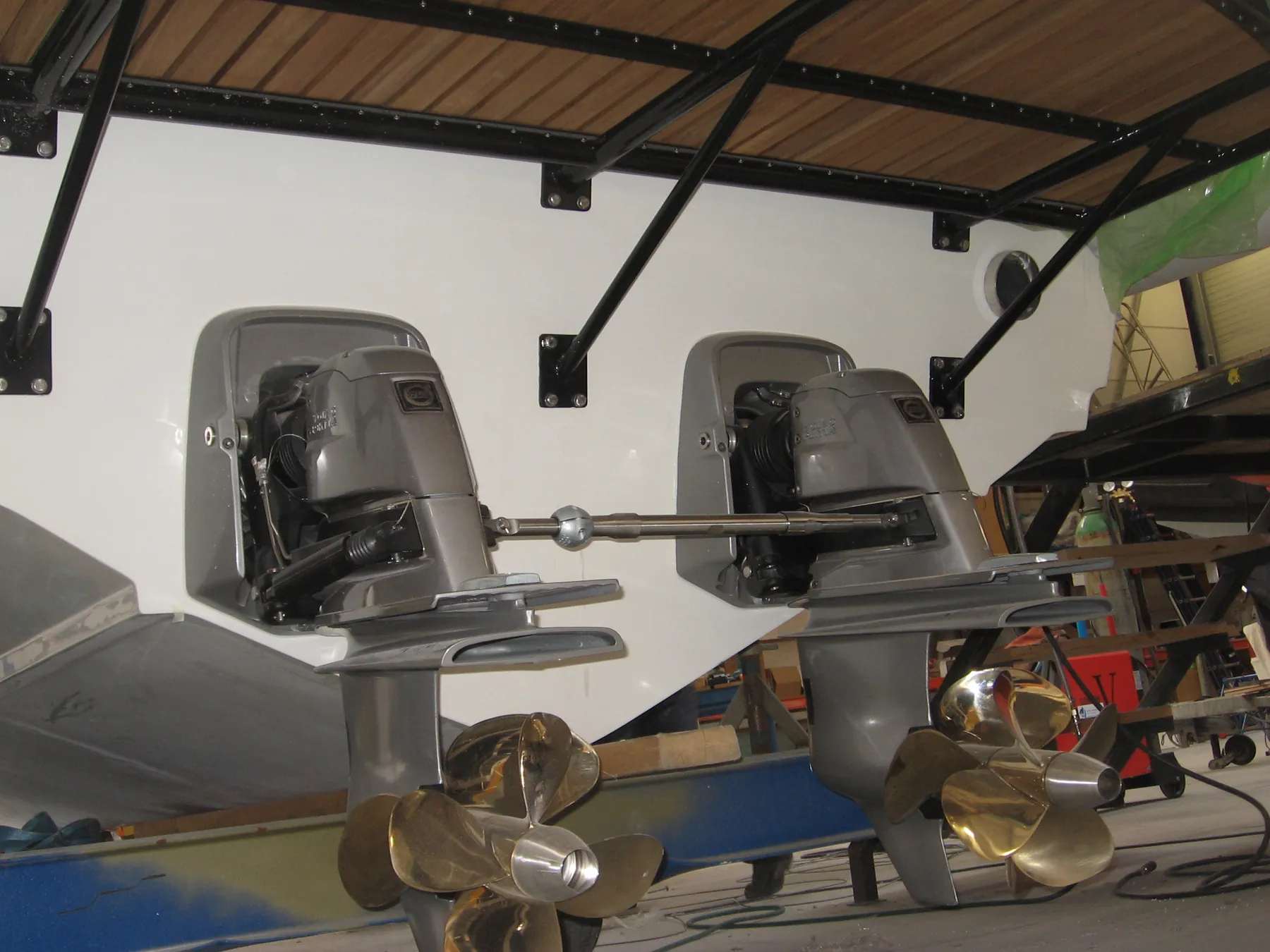

Drive	Volvo Penta Duoprop sterndrives
Bow thruster	12 V, controlled from the console
Fuel	Diesel, 2 × 400 l (± 800 l)
Speed	± 45 knots
Endurance	± 4.5 h at full speed, ± 6 h at cruise
Range at cruise	± 250 nm

Construction

Hull design	Deep-V
Hull & deck	Hand-laid composite, vinylester skin coat
Structure	Foam cell-core keels and bulkheads, no wood
Reinforcement	Kevlar-carbon
Collar	Neoprene-Hypalon 1670 dtex, 6 chambers, overpressure valves
Fittings	Stainless steel; heavy-duty aluminium hatches

Navigation & electrics

Radar	Raymarine C120, 2 kW closed scanner
GPS / chart plotter / echo	Raymarine C120
VHF	ICOM 502
Compass	Plastimo Offshore 105
Electrics	12 V DC, IP65; IP67 switch panel
Batteries	5 × Optima 100 Ah sealed
Charging	LADAC shore charger + alternators

Hull & deck

Unitary hull and deck mouldings of chopped strand mat and stitched unidirectional mat, hand-laid strictly to design weights and finished with a vinylester skin coat. Internally reinforced with longitudinal and transverse foam cell-core keels and bulkheads together with Kevlar-carbon reinforcements: no wood is used in the structure.

Collar

High-impact absorbent neoprene-Hypalon 1500 gsm (1670 dtex) collar with six independent air chambers, each with inflation and pressure-relief valves. Bonded and taped inside and out, reinforced in high-wear areas, with rubbing strakes, non-slip boarding patches and external lifelines.

Cabin & seating

Composite console/cabin with waterproof door and step-down entrance, chemical toilet, dry seating for four, vented battery stowage and stainless steel handrails. Pilot and navigator on Ullman shock-mitigated seats; six foldable Shockwave seats behind the console; a sun pad covers the complete engine-room section.

Comfort & leisure

Teak-inlay boarding platform on a stern protection frame, pressurised 12 V freshwater shower at the transom, fridge for at least 16 half-litre bottles, CD/radio/MP3 system with four marine speakers and remote control, diving ladder and diving-flag pole.

Safety

Automatic Sea-Fire FM-200 extinguisher in the engine compartment with charge indicator, 2 kg ABC portable extinguisher, three electric bilge pumps (min. 1,200 l/h) plus a manual backup, two anchors with chain and 40 m line, sea anchor, fire blanket, thermal protective aids, torch, first-aid kit and towing line.

Finish & warranty

Standard colours: arctic grey collar, white hull, deck and console, black powder-coated frames, light grey anti-slip deck and upholstery: all to be matched to your yacht. Warranty: 12 months from entering service (max. 18 months from delivery) on equipment and collar; 36 months (max. 42 months) on hull and deck against delamination.
