All-weather wheelhouse, waterjet agility

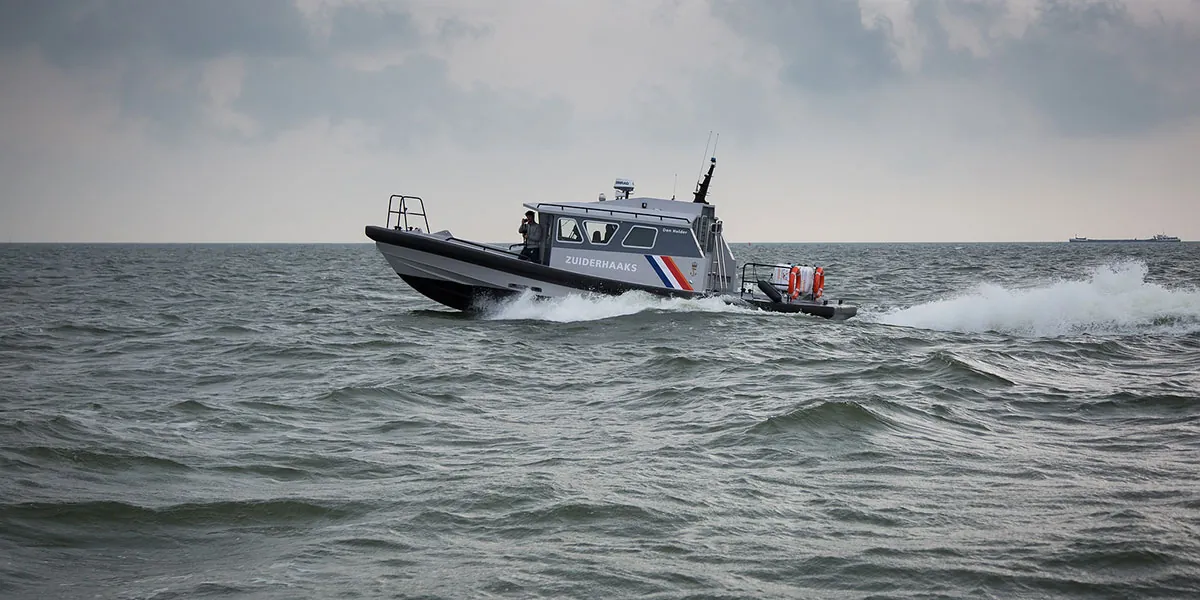

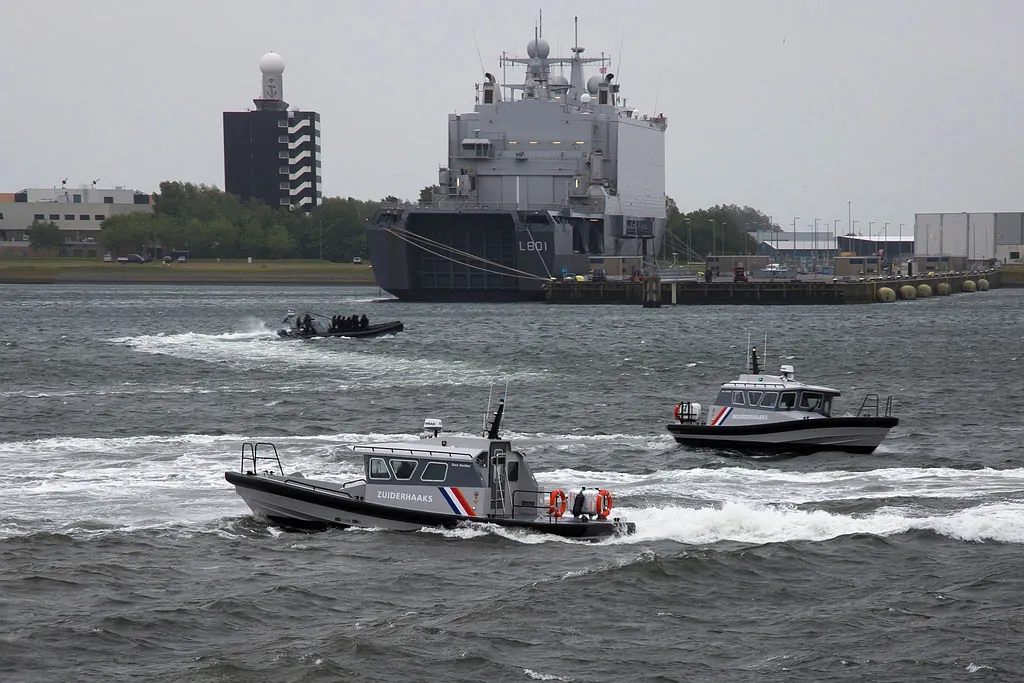

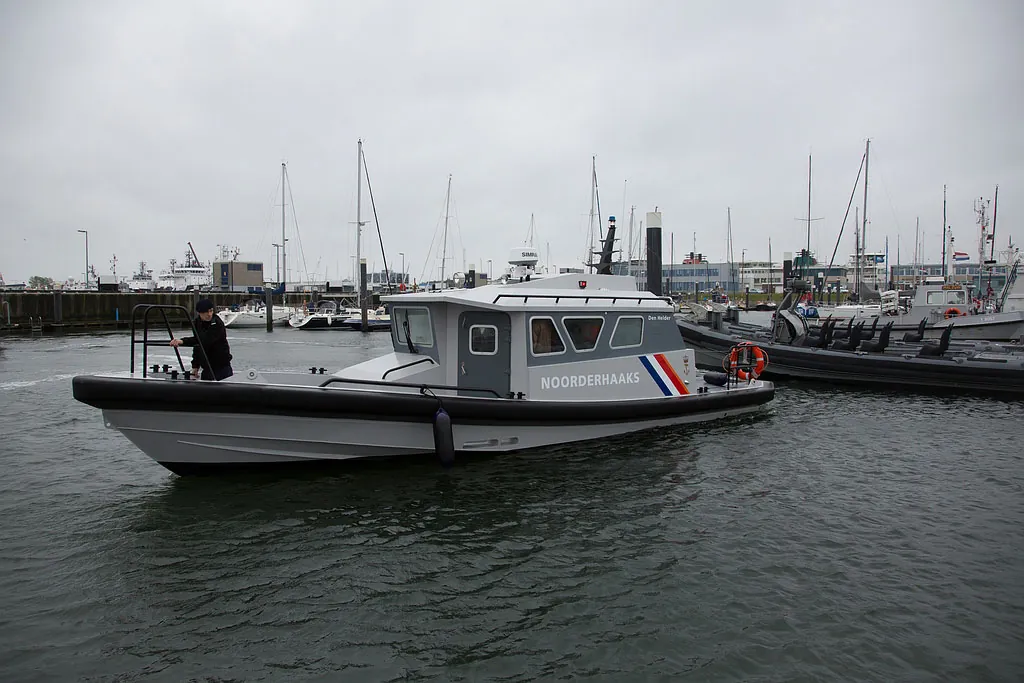

The K11 of the Hurricane aluminium series: a heavy-duty, high-speed patrol boat with an all-welded marine-grade aluminium Deep-V hull and wheelhouse, built to Det Norske Veritas rules. A high-impact Trelleborg hybrid foam fender runs around the bow and sides, so crews can come alongside and board other vessels safely.

Twin Volvo Penta marine diesels (2 × 165 kW / 450 HP combined) drive UltraJet UJ251 waterjets: shallow draught, no exposed propellers and precise manoeuvring. The insulated wheelhouse offers a 345° view, air-conditioning and heating, a toilet compartment, and an outside control post for beaching or berthing alongside.

Designed for surveillance and patrol, security tasks and alarm response, search and rescue, medical evacuation, customs work and disaster relief. The bow is reinforced for light ice conditions.

Features & advantages

All-welded 5383/6082 marine aluminium hull and wheelhouse, built to DNV rules
Twin Volvo Penta diesels with UltraJet UJ251 waterjets
Over 25 knots; 20 knots cruise for at least 10 hours
Trelleborg hybrid foam fender for safe boarding alongside
Wheelhouse with 345° view, Webasto air-conditioning & heating, toilet
Outside control post for beaching and berthing alongside
Norsap 800 shock-mitigating seats for helmsman and navigator
Bow reinforced for light ice; foldable mast for road transport

Applications

Surveillance & patrol
Security & alarm response
Search & rescue
Medical evacuation
Customs
Disaster relief

Gallery

Click an image to view it full screen.

Technical data

Specifications

Values shown are for the reference configuration. Every TP Marine RHIB is built to order — dimensions, power and equipment are adapted to your requirements.

Principal data

Length overall	12.60 m
Beam	4.00 m
Draught, loaded	0.73 m
Lightship	7.9 t
Full load	9.275 t
Persons	Helmsman + navigator + 5
Seating	2 × Norsap 800 shock-mitigating + 3 passenger seats

Propulsion & performance

Engines	2 × Volvo Penta marine diesel, 165 kW @ 3,500 rpm each
Combined power	450 HP
Propulsion	2 × UltraJet UJ251 waterjets
Fuel	Diesel, 800 l in two polyethylene tanks
Fresh water	50 l
Maximum speed	> 25 knots for at least 6 h (sea state 2)
Cruising speed	20 knots for at least 10 h, plus 15% fuel reserve
Sea state	Cruise speed in SS3; safe navigation at reduced power in SS4

Construction

Hull & wheelhouse	All-welded aluminium 5383/6082, Deep-V
Rules	Det Norske Veritas; CE(b) certificate
Plating	4–5 mm extruded plates; frames at 600 mm
Ice	Bow reinforced for light ice
Fender	Trelleborg hybrid PU-reinforced closed-cell foam
Service life	15–20 years

Navigation & communication

Radar	Raymarine ARPA
Chart plotter	Raymarine E120, 12.1"
Compass	Raymarine gyro + magnetic compass
Autopilot	Raymarine
VHF	2 × ICOM IC-M603
Loudhailer / intercom	Raymarine Ray430
Other	VHF/UHF direction finder; provision for C2000

Hull & superstructure

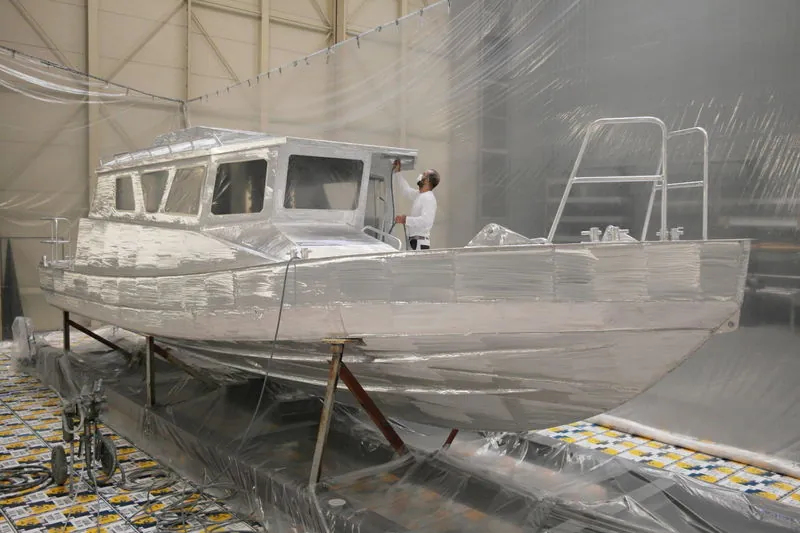

All-welded aluminium construction, divided into watertight compartments, with continuous welds below the main deck. Bottom longitudinals at 200 mm and frames at 600 mm; the engine bed is designed to keep shafting vibrations low. The hull and engine room are coated with Noxudol to reduce slamming noise, the engine room has sound-damping foam, and a flush sacrificial anode system protects against corrosion. Lifting points are integrated at bow and stern.

Fender

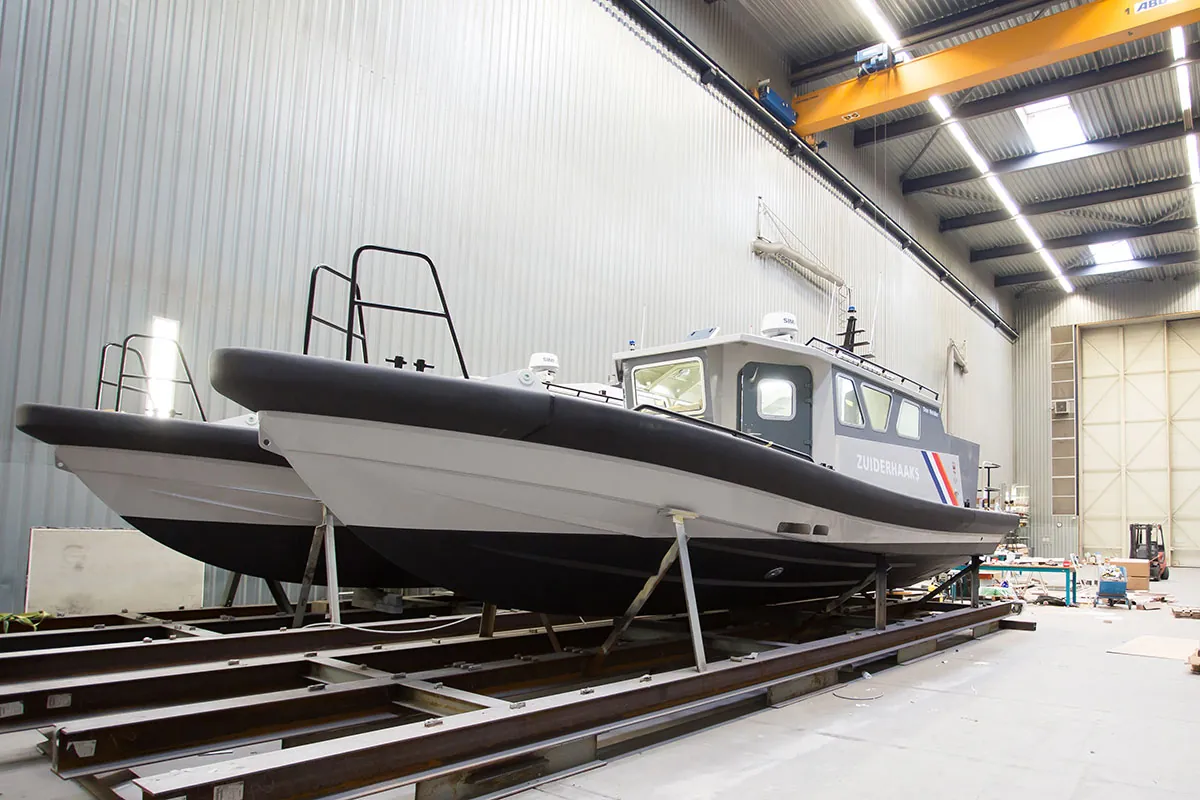

Trelleborg hybrid collar: PU-reinforced rubber skin over closed-cell polyethylene foam of variable density, moulded to specification, with an extra impact pipe along the sides. Lighter than traditional fenders with similar or better protection; the flat top has a non-skid surface for boarding.

Wheelhouse

Bridge forward, passenger area and toilet aft, flat floor and 2,100 mm headroom. Safety-glass windows give a 345° view; the front windows have sun-glare screening and pantograph wipers with washers. Lockable, watertight front and aft doors, an emergency escape hatch in the roof, and thermal insulation throughout. Webasto air-conditioning with heating and ten hot-air outlets; separate ventilation for the toilet.

Controls & instruments

From the bridge: steering, throttle, jet controls, trim tabs/interceptors, lights and bilge pumps, with Volvo Penta EVC engine data. An outside standing post behind the wheelhouse has engine start/stop, jet controls and horn for beaching or manoeuvring alongside. Alarms for bilge level, engine-room smoke and fire-system release, and water in fuel.

Electrical systems

Two pairs of starting batteries in the engine bay plus two emergency batteries that keep bilge pumps, emergency and navigation lights, fire detection, horn, GPS and VHF running for three hours. A 7 kW Onan generator starts automatically at low voltage; 115 A marine alternators, converters and 230 V shore power with 220 V and 12 V outlets in the wheelhouse.

Safety & deck

Four automatic/manual bilge pumps plus hand pumps per compartment, an IMO-compliant aerosol fire-extinguishing system in the engine room, and flame-retardant insulation. Two SOLAS life rafts (min. 6 persons each), seven life jackets, three life buoys, 12 parachute rockets and 6 red flares. Self-draining deck, four mooring cleats, two towing bollards, bow towing eye and a foldable mast for road transport.
